When the twin-shaft tire shredder finds a fault, it must be targeted to solve

Everyone knows that mechanical equipment will have a fever after running for a long time, especially tire shredder equipment that requires high-speed rotation of parts. If the tire shredder is overheated or heats up for too long, it will cause damage to the equipment. How to solve it, first of all, to distinguish the hot parts, to solve the problem:

1, the motor is hot

Fault analysis: When the motor works for a long time, it will be high or low heat, which is generally a normal phenomenon, but if it is hot, it may be a problem with the voltage, or the motor itself, it is necessary to stop the inspection, to be solved Then start production again.

2, the conveyor belt is hot, the motor is hot

Fault analysis: The heating of the conveyor belt is usually caused by too fast feeding speed, which causes a large amount of shredded objects to be collected in the tearing chamber and cannot be removed in time. If the rotor resistance is too short, it will cause the belt to heat up. In addition, during normal use, the equipment The vibration may cause the motor fixing screw to loosen, and the slight movement of the motor causes a slight angle between the motor wheel and the main pulley to rub the belt to cause the belt to heat up.

3, the bearing appears hot

Fault analysis: When the bearing is hot, it is because the rotor has eccentricity. At this time, we have to shut down the machine, check whether the screws of the lower bearing are loose, whether the lubricating oil is too small, and then solve the problem and then start production.

4, tearing cavity appears fever

Don't worry too much when we have a fever in the tearing cavity. This is a normal phenomenon. Because when we shred, the material will constantly rub and collide in the machine cavity, so there will be heat.

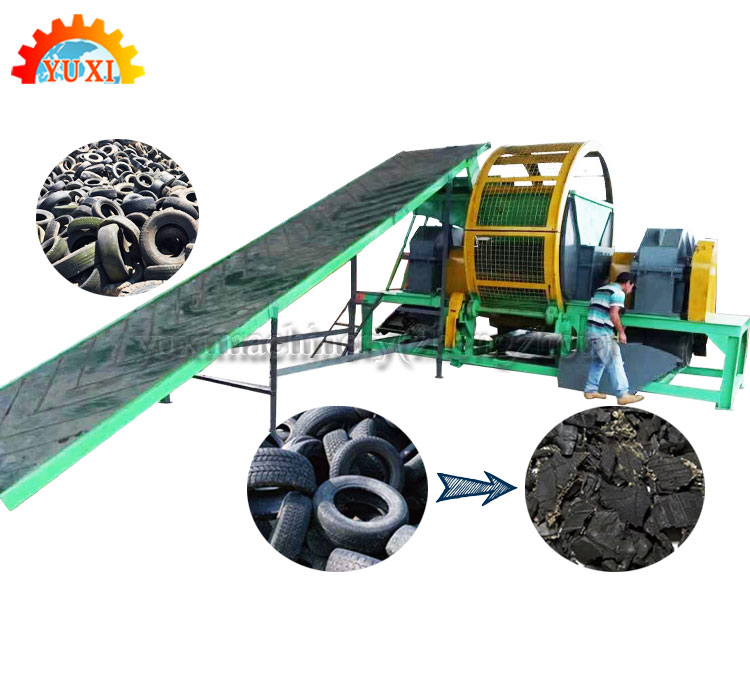

Tire shredder is our company introduce advanced technology research and absorbing and second-generation product. At the general temperature, can be put directly into the tyre antrum coarse crushing into 50 * 50 mm block, so the next rotating can grind into 10-30 meshes tagma or wire and fiber separation equipment.

We also produces the entire production line for tire recycling machine, namely the tire recycling plant.
