Double shaft shredder machine also called coarse crusher, All kinds of scrap metal materials through the hopper enter chamber, using the rotating blades to cut, tear, crushing to each other in the chamber, and then outputs the finished product directly.
Suitable Material
Heavy Melting Scrap (HMS): heavy waste metals: 6mm＜Thickness≤10mm, Waste steel plate, 5mm-25mm reinforcing steel bar (Rebar).
Light Melting Scrap (LMS): Light waste metals: 1mm＜Thickness≤6mm, scrap metals, waste gas tank, LPG gas containers, scrap bike, scrap car shells, motor shells, scrap metal, oil Iron tank, large blue barrels, beverage cans, tin cans, scrap aluminum windows, waste aluminum alloy.
Shape and final product size
Shredding entire waste metal materials into Block, Chip, Pieces with different small size, 5-30cm can be customized according to clients request.
Light Melting Scrap (LMS): Light waste metals: 1mm＜Thickness≤6mm, scrap metals, waste gas tank, LPG gas containers, scrap bike, scrap car shells, motor shells, scrap metal, oil Iron tank, large blue barrels, beverage cans, tin cans, scrap aluminum windows, waste aluminum alloy.
Shape and final product size
Shredding entire waste metal materials into Block, Chip, Pieces with different small size, 5-30cm can be customized according to clients request.
Machine details:

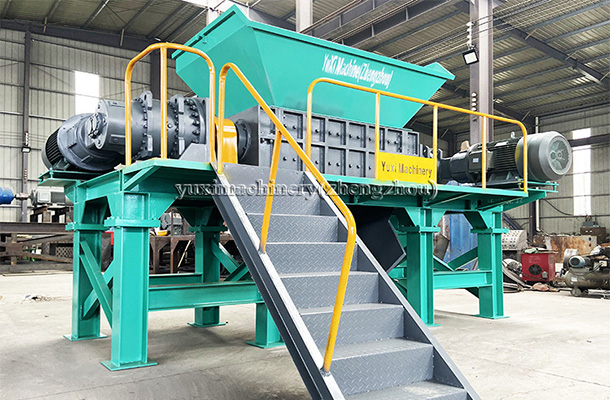

►YUXI brand double shaft shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic containers and barrel, waste tire, scrap metal, fiber and solid waste which the normal crusher can not handle.
►We are a true manufacturer in Zhengzhou City, professional can design new models as your special requests.
►The internal gear of the planetary reducer adopts 20CrMnTi carburizing and quenching and has the characteristics of small volume, lightweight, high bearing capacity, long service life, stable operation, low noise, large output torque, large speed ratio, high efficiency, and safety performance.
►It has the characteristics of power splitting and multi-tooth meshing.
►The bade material is made of special alloy tool steel forging banks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
►The overall toughness of hardness can be used repeatedly.
- Customized according to clients raw-materials thickness and finished Product Size
- SKD11 high alloy steel material
- Hardness ≥62-65 HRC
- Strong impact resistance
- Good toughness and surface hardness
- 100% ultrasonic nondestructive inspection
Parameter
| Model | Power(kw) | Capacity | Product size | Hopper size | Weight | Dimension |
| YXS-600 | 15*2KW | 2-3T/H | 3-10CM | 0.82*0.9M | 2.5T | 2.6*2*1.9M |
| YXS-800 | 22*2KW | 3-5T/H | 3-10CM | 0.9*1.0M | 3.6T | 2.8*2*1.9M |
| YXS-1000 | 37*2KW | 5-8T/H | 3-10 CM | 1.2*1.0M | 5.7T | 3*2*1.9M |
| YXS-1200 | 45*2KW | 6-10T/H | 3-10CM | 1.4*1.0M | 9.5T | 3.2*2*1.9M |
| YXS-1400 | 55*2KW | 8-12T/H | 3-10CM | 2.0*2.0M | 18T | 4.3*2*2.4M |
| YXS-1600 | 75*2KW | 12-18T/H | 3-10CM | 2.3*2.0M | 24T | 5*3*2.4M |
| YXS-2000 | 90*2KW | 16-22T/H | 3-10CM | 2.3*2.0M | 35T | 6*3.5*2.4M |
| YXS-2200 | 132*2KW | 20-26T/H | 3-10CM | 2.5*1.8 | 62T | 7*4*4.5m |
| YXS-2600 | 160*2KW | 25-60T/H | 3-10CM | 3.2*2.0 | 85T | 8.2*4*4.3m |
Please leave a message for your requirements, the machine can be customized for you.
