What are the components of the single-axis shredder?

What are the components of the single-axis tire shredder?

1, the rotor

(1) V-shaped movable knife arrangement---high efficiency shredding + large shear force, high output;

(2) DC53 material heat treatment moving knife----replaceable angle for multiple use;

(3) Adjustable fixed knife----high wear resistance;

(4) Rotor weldable wear layer - suitable for processing materials such as sand or fiberglass.

2, screen

(1) Quickly changeable screen (12-100mm) - used to control particle size;

(2) The screen bracket is equipped with a safety switch;

(3) The screen bracket has cylinder open - set on V800 and larger models for easy maintenance;

(4) Specially designed screens - Screens of various structures can be selected depending on the type of material.

3, bearing

(1) High-strength bearings-----separately placed outside the box to prevent debris from entering the bearing;

(2) Overall processing of the bearing housing----to ensure the installation accuracy and extend the bearing life;

4, hydraulic station

(1) Hydraulic system----The push box is retracted at high speed, which greatly shortens the retreat time and enlarges the output;

(2) Air-cooling device----maintaining the oil temperature of the hydraulic system to meet the needs of continuous production;

(3) Fully sealed cover----From a safety point of view, a fully sealed cover can be selected when handling materials such as wood.

5, electric control cabinet

(1) Independent electric control cabinet - Siemens PLC control system, electrical components (optional);

(2) Manual/automatic switching system for easy cleaning and maintenance;

(3) Intelligent control system---The rotor automatically reverses when overloaded, and the equipment runs automatically when the material is short.

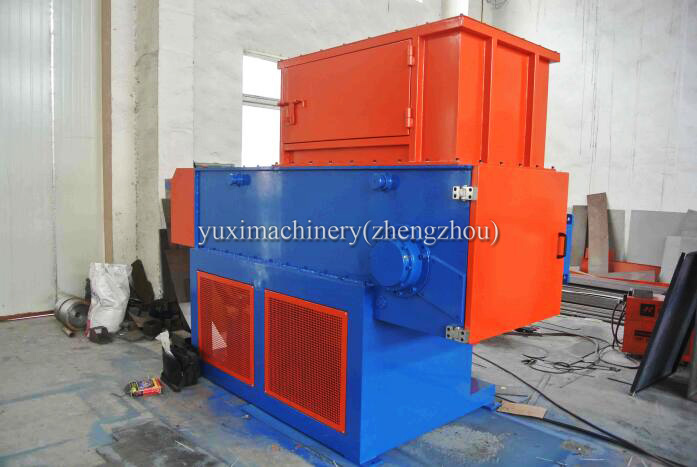

Yuxi Machinery's single-shaft tire shredder is forged with high-strength steel, which has the advantages of low energy consumption and high output.
