What is the structure of the uniaxial shredder?

The single-shaft tire shredder is a large shredder machine suitable for high-volume, large-scale shredding and crushing of various materials, especially for large-size or high-hardness materials (such as thick-walled tubes, pallets, totes, films, woven bags, light metals).

Large-capacity hopper and silo with horizontal flat push system Large-capacity hopper and silo with horizontal flat push system to maximize the superiority of high hardness and large size materials.

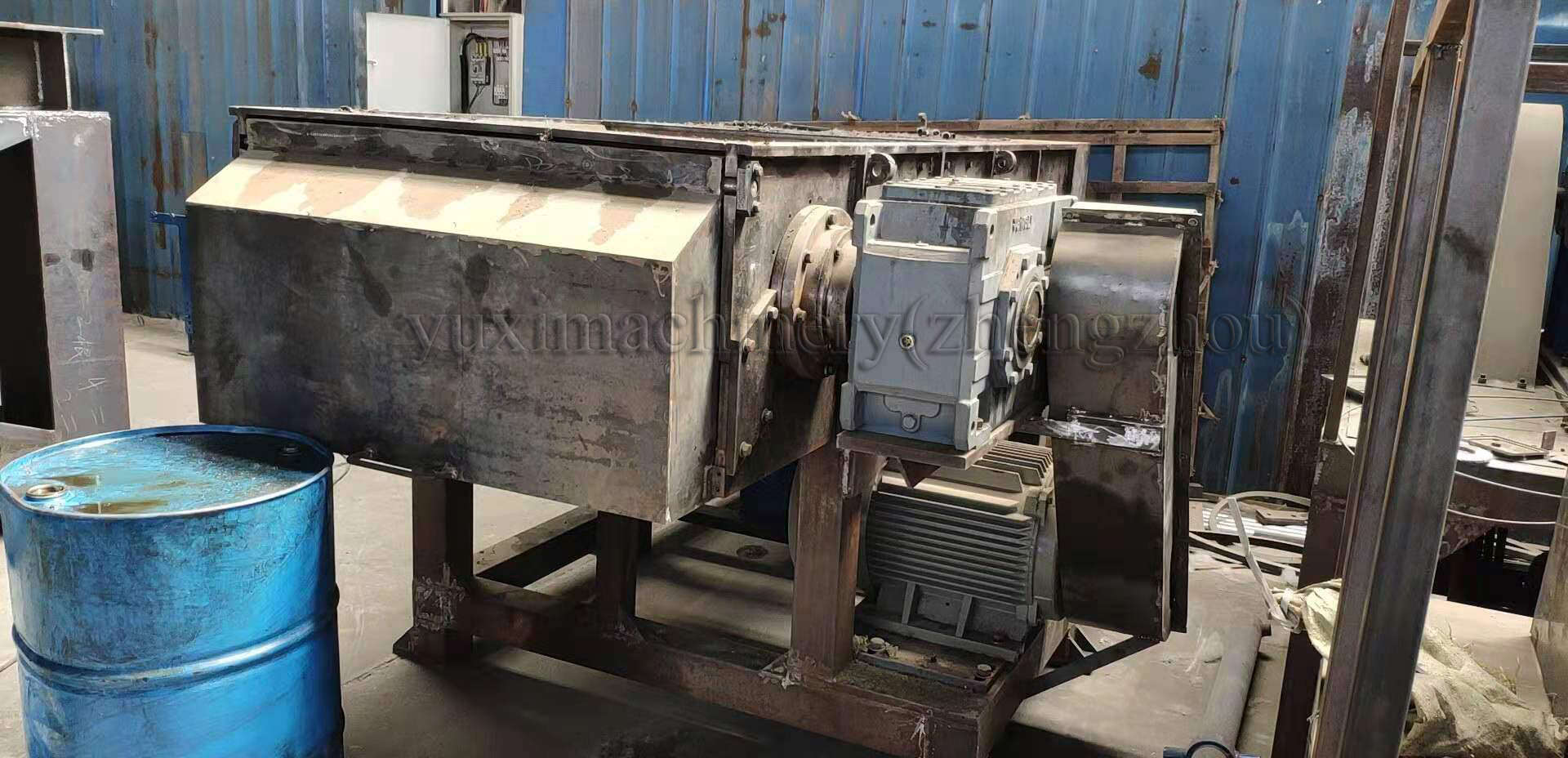

The structure of the single-axis tire shredder:

1, knife and stick

2, sieve bracket

(1) The screen can be quickly replaced, and the aperture of the net can control the discharge size of the material;

(2) The screen bracket is equipped with a safety switch;

(3) The screen bracket is controlled by a hydraulic cylinder;

(4) Screens can be designed with special screens depending on the type of material.

3,material-pushing box

(1) The push box is equipped with an adjustable steel guide block;

(2) The push box is equipped with an advanced sealing design;

4, the drive system

(1) High efficiency motor starting;

(2) Reducer damping device protection system reduces damage caused by pressure.

Yuxi Machinery's single-shaft tire shredder is forged with high-strength steel, which has the advantages of low energy consumption and high output.
