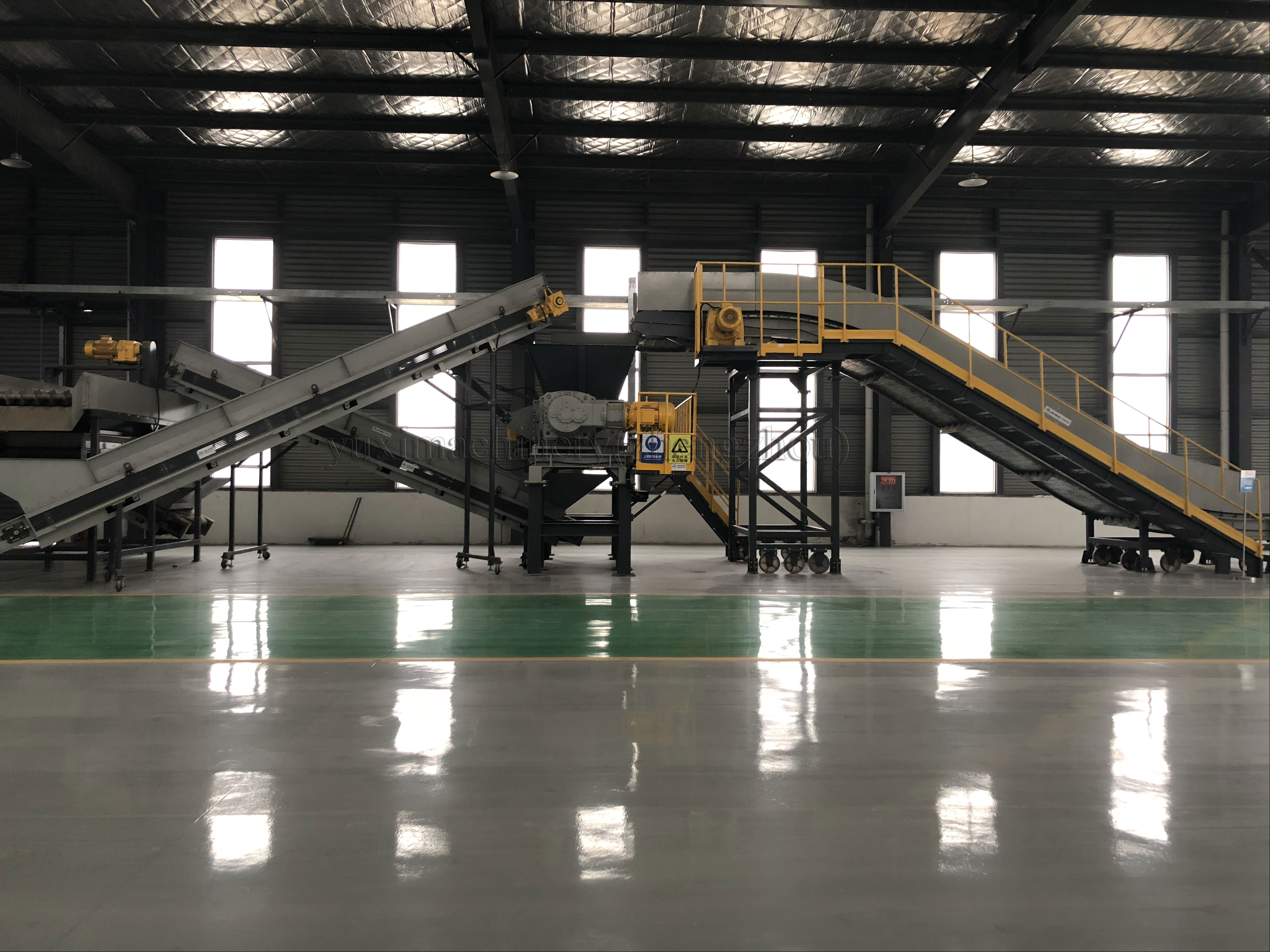

Production line structure of tire recycling line

Production line structure of tire recycling machine

For different tire characteristics and productivity requirements, the line structure may include:

1. Fully automatic wire drawing machine: remove the tire steel ring

2. Conveying equipment: conveyor belt, screw conveyor and air pressure transmission system

3. Tire Shredder: tear the tire into film (50mm-150mm)

4. Wire separator: Separate rubber and steel wire and process into rubber particles (10mm-20mm).

5. Magnetic separator: sorting steel wire from rubber wire mixture

6. Shredder: Crush the rubber to a smaller size (1mm-7mm)

7. Vibrating screen: Sorting rubber particles of different sizes, and oversized particles are sent back to the crusher for secondary crushing.

8. Fiber separator: remove foreign matter and fiber

9. Secondary magnetic separator: small steel wire that may remain at the place

10. Mill: Grind the granules into powder (30 mesh - 100 mesh)

11. Fully automatic bagging system: loading the finished product into a storage bag or bag
