What is the workflow of the radiator recycling line?

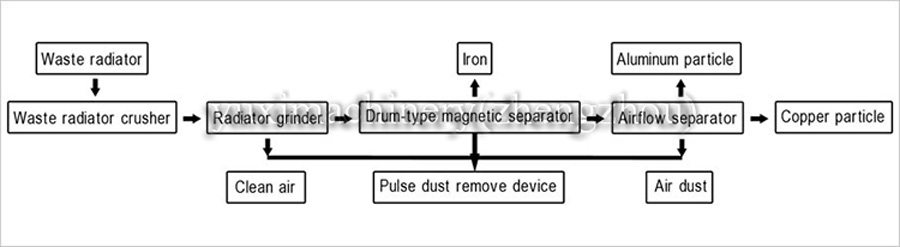

The waste water tank radiator disassembling and recovering device comprises a first crusher, a first conveyor belt, a second crusher, a second conveyor belt, a magnetic separation device, a vibration sorting device, a dust suction pipe and a dust remover which are sequentially connected.

1. The raw material enters from the shredder silo, and then is crushed. The size of the crushed raw material is 10-25cm, 2. Then transported by the conveyor to the vertical crusher, the size after crushing is about 5-8cm.

3. The broken material is separated from the iron by a magnetic separator

4. The remaining material is separated from the copper particles by the vibrating screen gravity separator.

5. Collect dust and other waste generated during the operation of the machine through the dust collector.

Yuxi radiator recycling production line adopts multi-stage crushing processing to optimize the structural design of the crusher and effectively control the loss rate of copper and aluminum. Therefore, it has been favored by many customers since its launch. The order quantity has been large and exported to Malaysia, Thailand, Indonesia and other places. , ideal for recycling of heat sinks.
